Manufacturing
As a leading tempered glass panel manufacturer and glass switch panel supplier, we provide one-stop OEM/ODM services for the smart home, home appliance, and security sectors.
Our 4,200 ㎡ facility manages the entire production lifecycle in-house. We specialize in full-process glass deep processing, including cutting, edge grinding, polishing, CNC engraving, tempering, and cleaning, as well as silk-screen printing, bonding, and AG/AF/AR coating.
Trusted by Fortune 500 industry leaders, we deliver reliable, high-performance glass panels with large-scale glass manufacturing capability.
To ensure an annual capacity of 10 million units, we operate an extensive fleet of core equipment:
32
High-precision CNC engraving machines
3
Cutting machines and 1 automated edge grinding line
2
Dedicated tempering
production line
production line
3
Automated silk-screen lines and 15 printing machines
Functional Surface Coatings & Optical Treatments

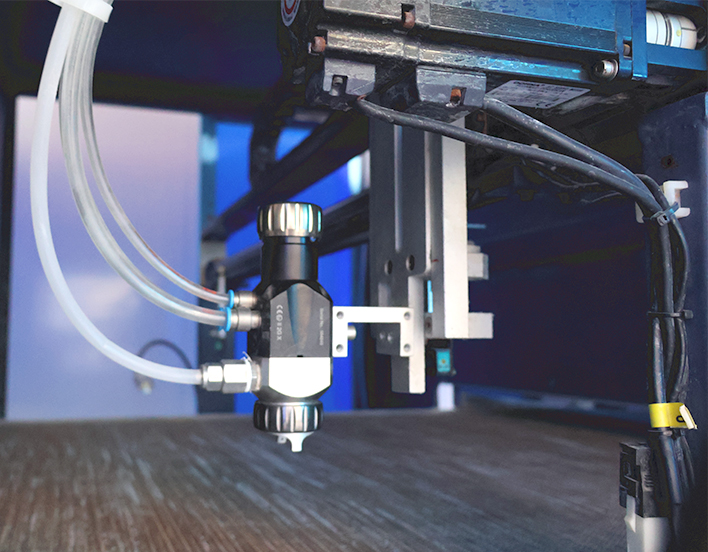

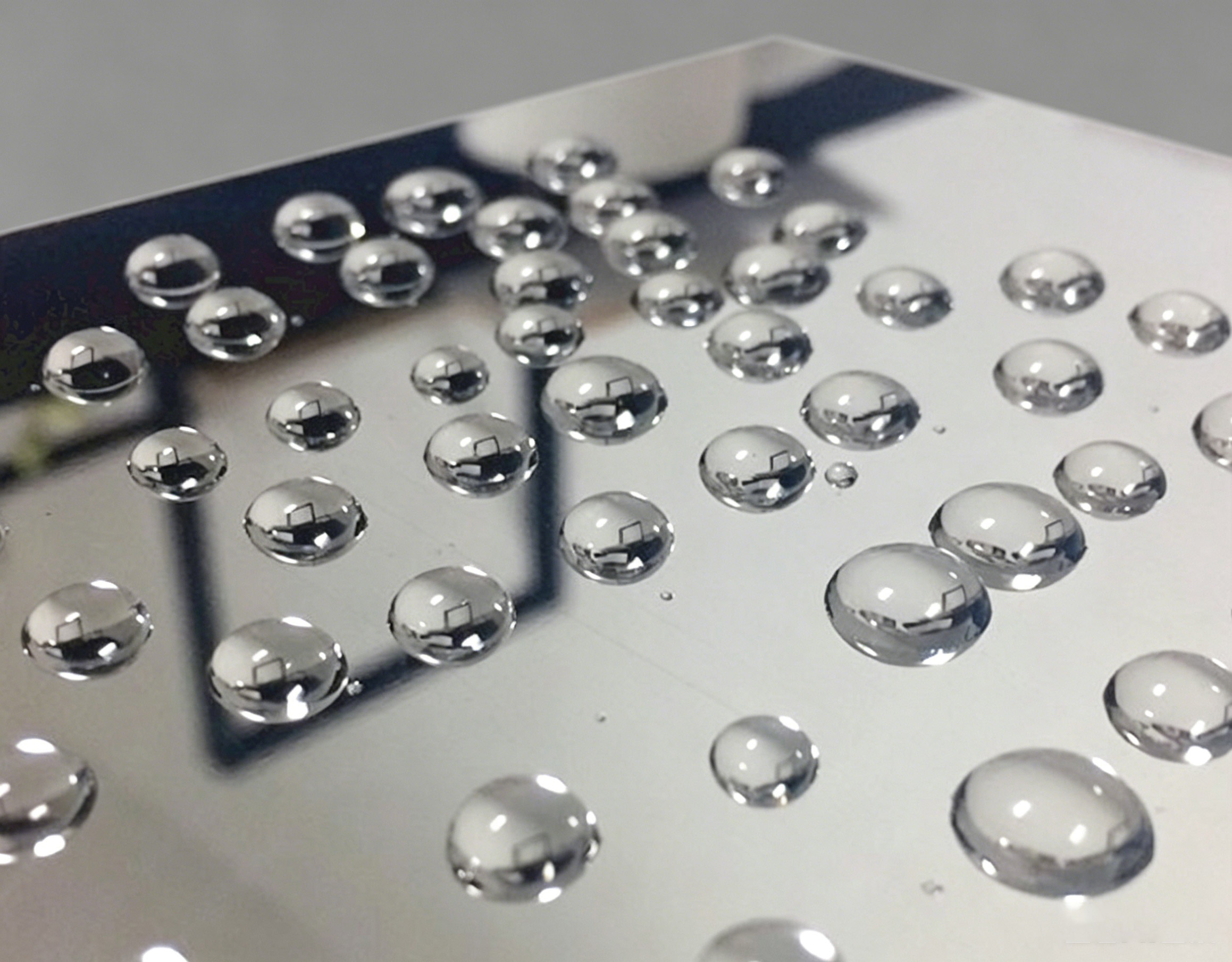

Anti-Fingerprint Nano-Coating (AF)
An ultra-smooth, oleophobic nano-layer engineered to eliminate smudge accumulation on your touch interfaces, providing a premium tactile feel with high wear resistance.

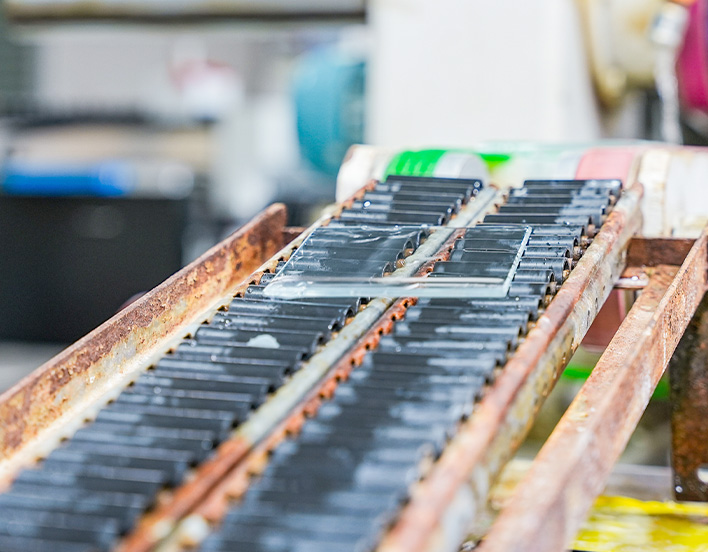

Anti-Glare Etching & Coating (AG)
A precision etched micro-texture surface with approximately 10,000 particles per cm², designed to diffuse incoming light and reduce mirror reflections, ensuring stable visual clarity and reading comfort for wall-mounted control glass in different lighting environments.

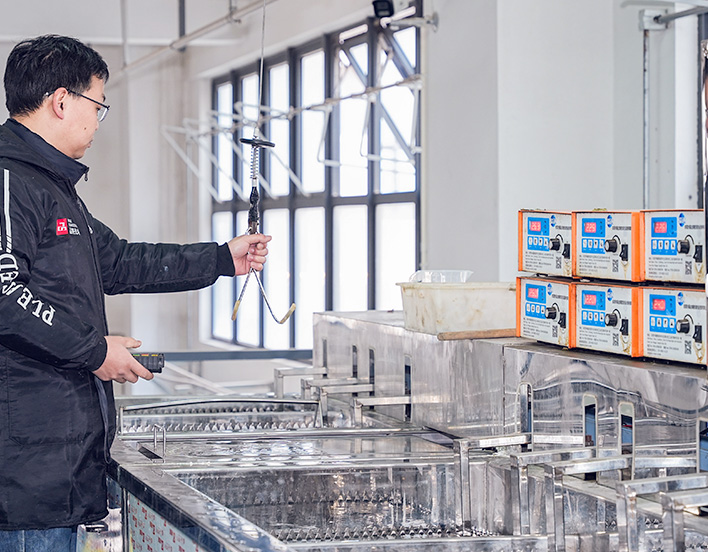

Tempered Mirror Coating with Rainbow Electroplated Finish
Multi-layer sputtered coating resistant to 700°C tempering, delivering a tempered mirror finish. With colored glass and adjustable parameters, it enables decorative finishes, including semi-reflective and semi-transparent effects.

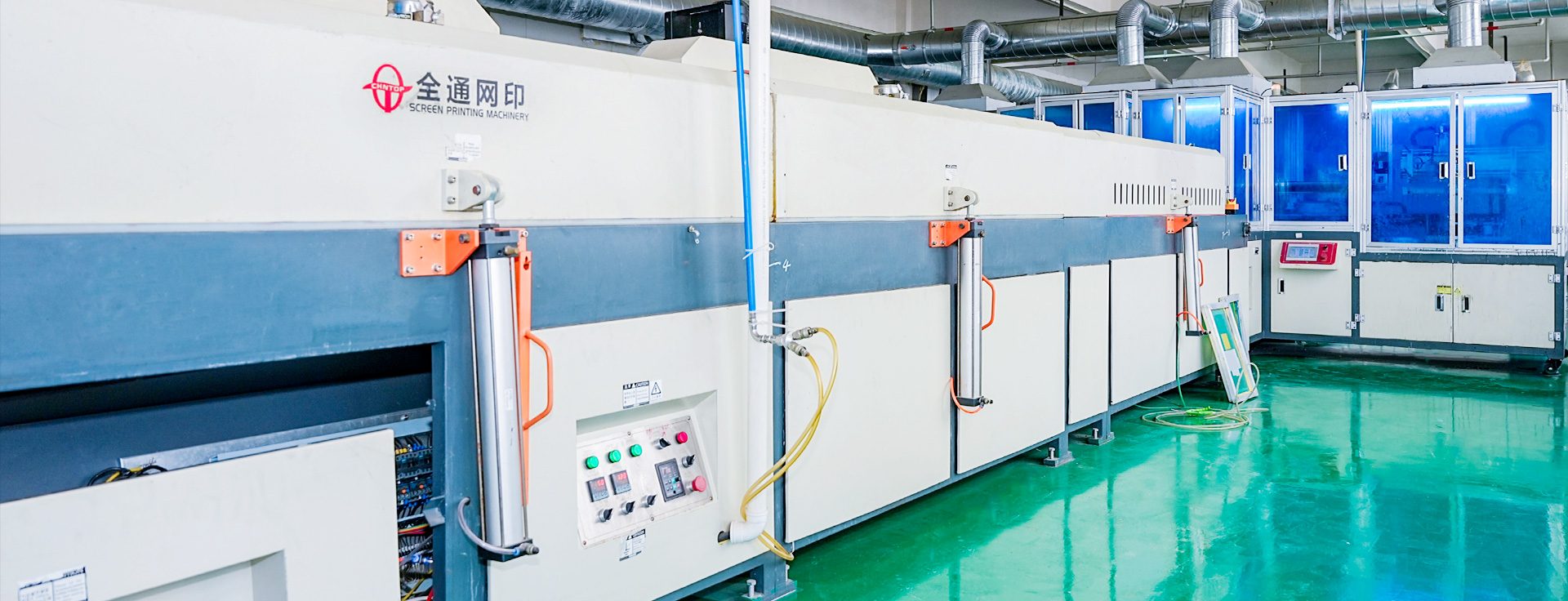

Precision Silk Screen Printing
Our printing process is carried out in a Class 100,000 cleanroom environment to eliminate micro-defects and ensure surface purity from the source. Supported by a fully automated printing line with automatic glass loading and unloading, we ensure consistent output quality and cost efficiency.
Using high-tension screens and eco-friendly lead-free inks, we achieve high-opacity coatings with ultra-fine detail, ensuring your brand colors remain vibrant and consistent across every production run.
Batch-to-batch deviation strictly controlled at ΔE<0.8
Capable of ultra-fine line printing down to 0.1mm with zero light leakage.

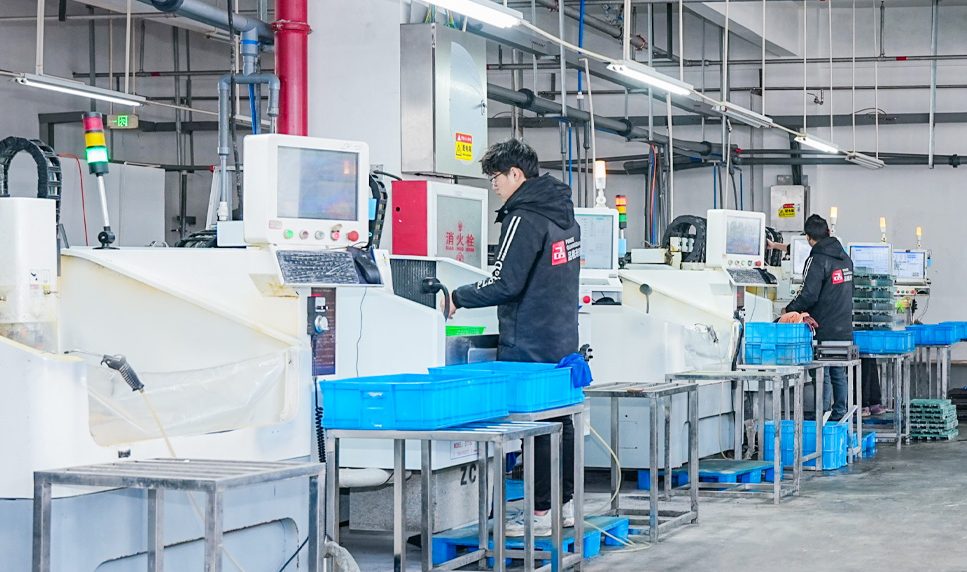

Core Glass Processing and Manufacturing Technologies

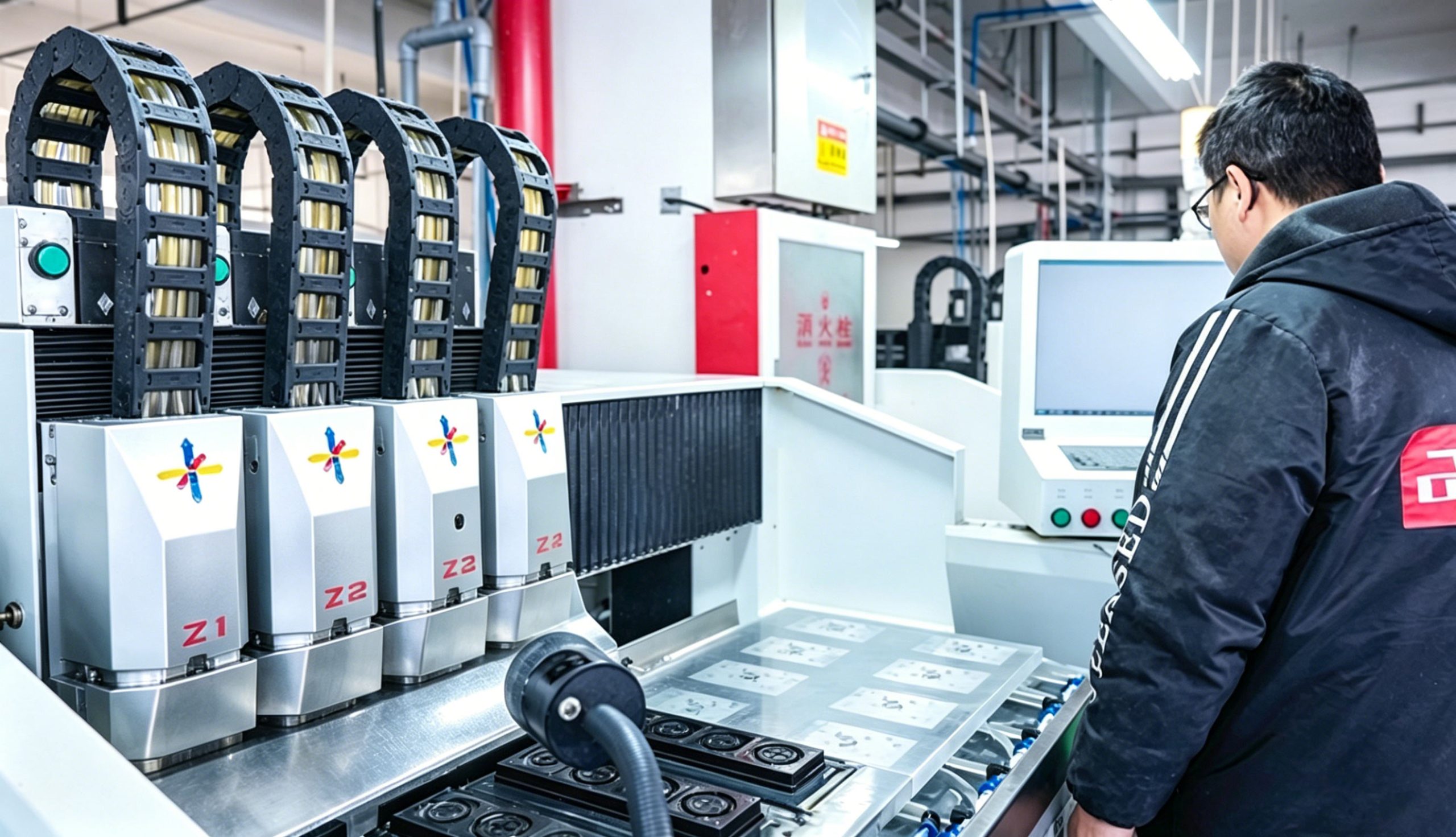

High-Precision CNC Machining
Leveraging a fleet of 4-axis high-speed CNC workstations, we deliver complex 3D geometric machining for glass panels with high accuracy. Our precision ensures seamless integration with your product housing, even for ultra-thin bezel designs and precision sensor layouts.
- Dimensional Tolerance: Consistently maintained within 0.05mm.
-
Advanced Contouring: 2.5D/3D edge polishing to reduce stress concentration while providing an ergonomic touch and refined product aesthetics
-
Intricate Geometry: Specialized in step holes, blind holes, and countersinks for high-precision sensor integration, meeting the requirements of high-specification applications.

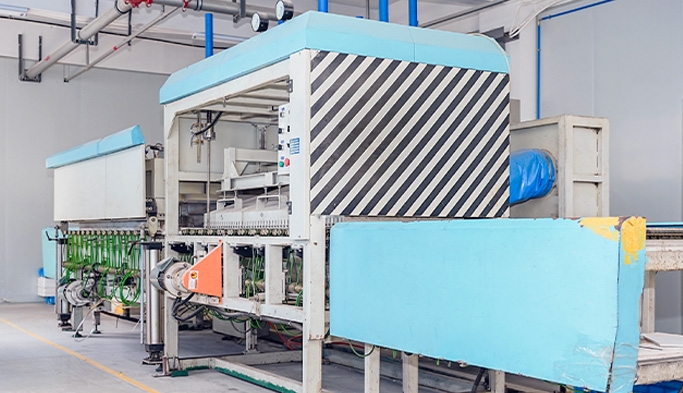

Advanced Tempered Glass Production
We strengthen custom glass cover plates through advanced tempering processes.
Compressive stress of 90–800 MPa is formed on the glass surface. Provides high anti-explosion safety performance and compliance with international IK impact standards.
-
Physical Tempering ：For glass above 3mm, we heat it to around 700°C until a softened state is reached. The glass is then rapidly cooled through high-pressure air quenching, restructuring internal stress, and increasing mechanical strength for your application needs.
-
Chemical Tempering ：For glass below 2.5mm, an ion-exchange process replaces sodium-calcium ions with potassium ions in a molten salt bath. This forms a dense compressive layer, improving bending resistance for your thin glass panels used in touch applications.
